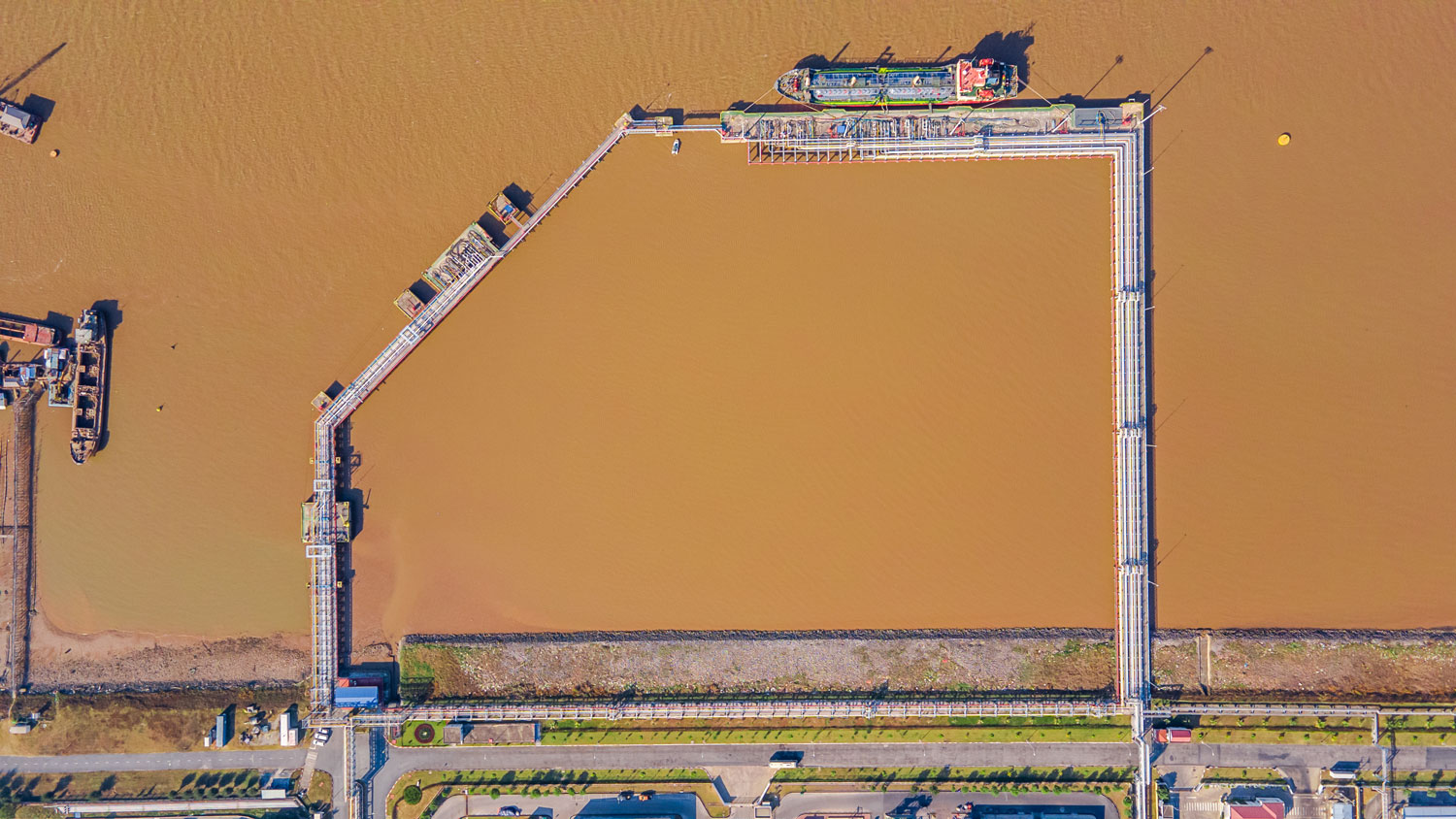

Liquids Jetties

Built to stringent European standards, DEEP C’s Liquids Jetties forms a strategic infrastructure within the petrochemical park in DEEP C Hai Phong 1 industrial park. This built-in infrastructure provides a cost-efficient, reliable and high-performance solution for handling liquid products for more than 30 petrochemical and chemical clients within the petrochemical park.

Following the success of this shared-use jetty model, DEEP C plans to replicate and expand the system in DEEP C Quang Ninh to better support the growing petrochemical cluster in northern Vietnam.

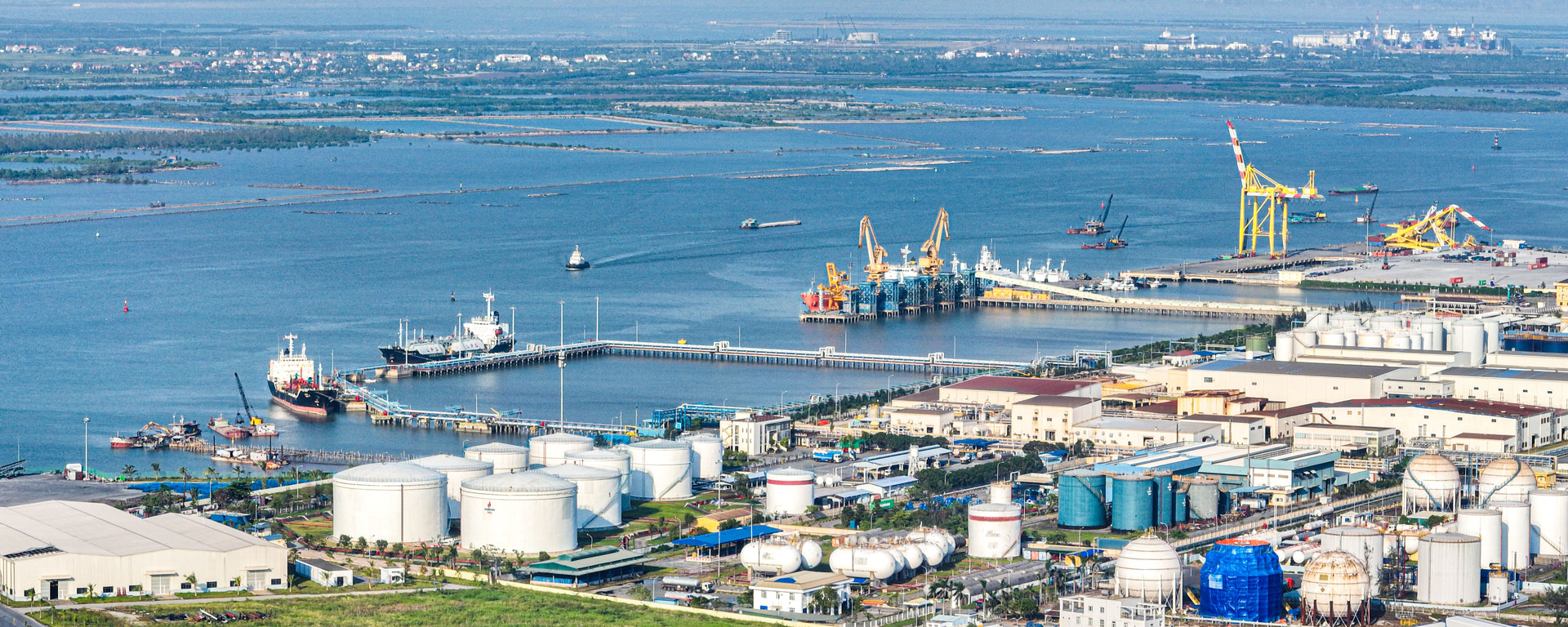

Key Advantages

Key Advantages

DEEP C’s Liquids Jetties are designed to strengthen your competitive edge, providing reliable liquid bulk handling infrastructure in Northern Vietnam.

Connectivity

Optimal access for vessels and efficient distribution of liquid products across Northern Vietnam and beyond.

Top-tier safety

24/7 monitoring by a professionally trained crew, fire-detection and fire-fighting systems for liquid cargo operations, annual emergency drills with active participation from the Hai Phong Fire Department.

Cost Efficiency

Instead of building a private jetty, you can leverage DEEP C’s shared infrastructure without upfront investment to accelerate operational readiness.

Clustering

Situated within a thriving petrochemical ecosystem, the jetties connect you to a network of chemical storage, and energy services, allowing you co-utilize shared infrastructure and vessel shipments

Technical & Safety Standards

Design Capacity

Jetty A1-A2

300DWT & 10,000DWT

Jetty B2

20,000DWT

Length of quay wall

Jetty A1-A2

171m

Jetty B2

193m

Certification

Certified ISO 9001:14001 certification for the operation of liquid jetties

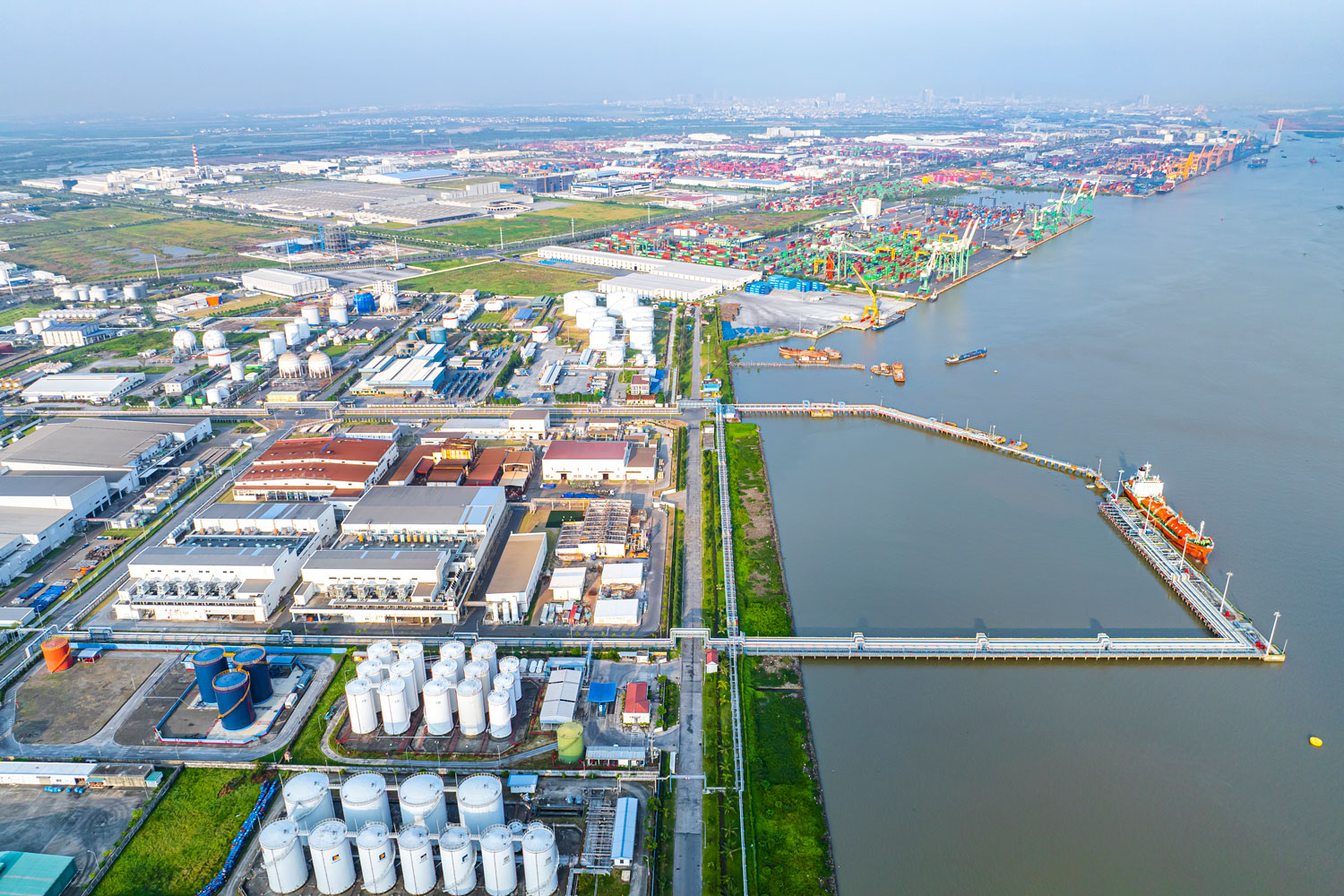

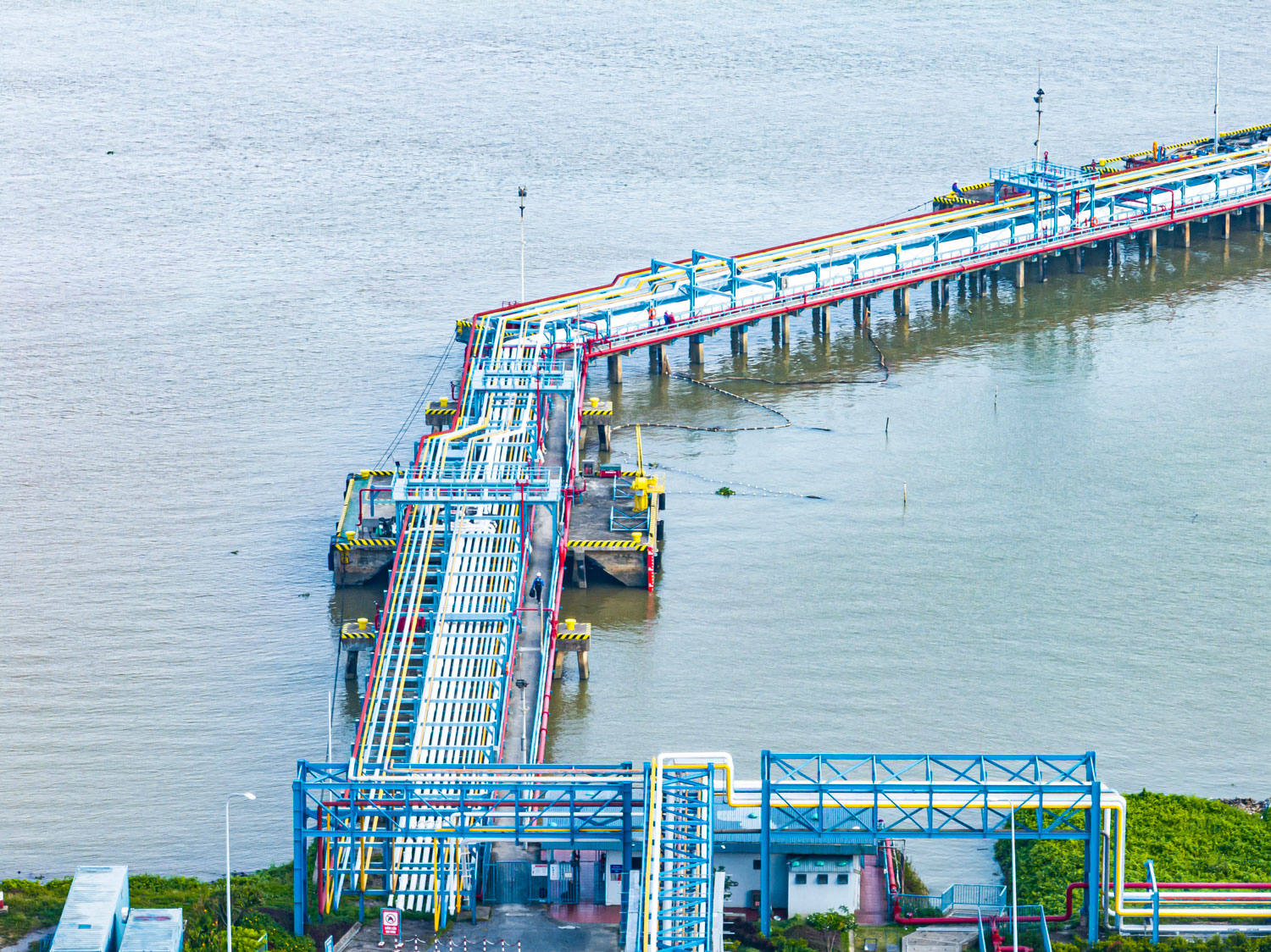

Operations
Dji
Dji

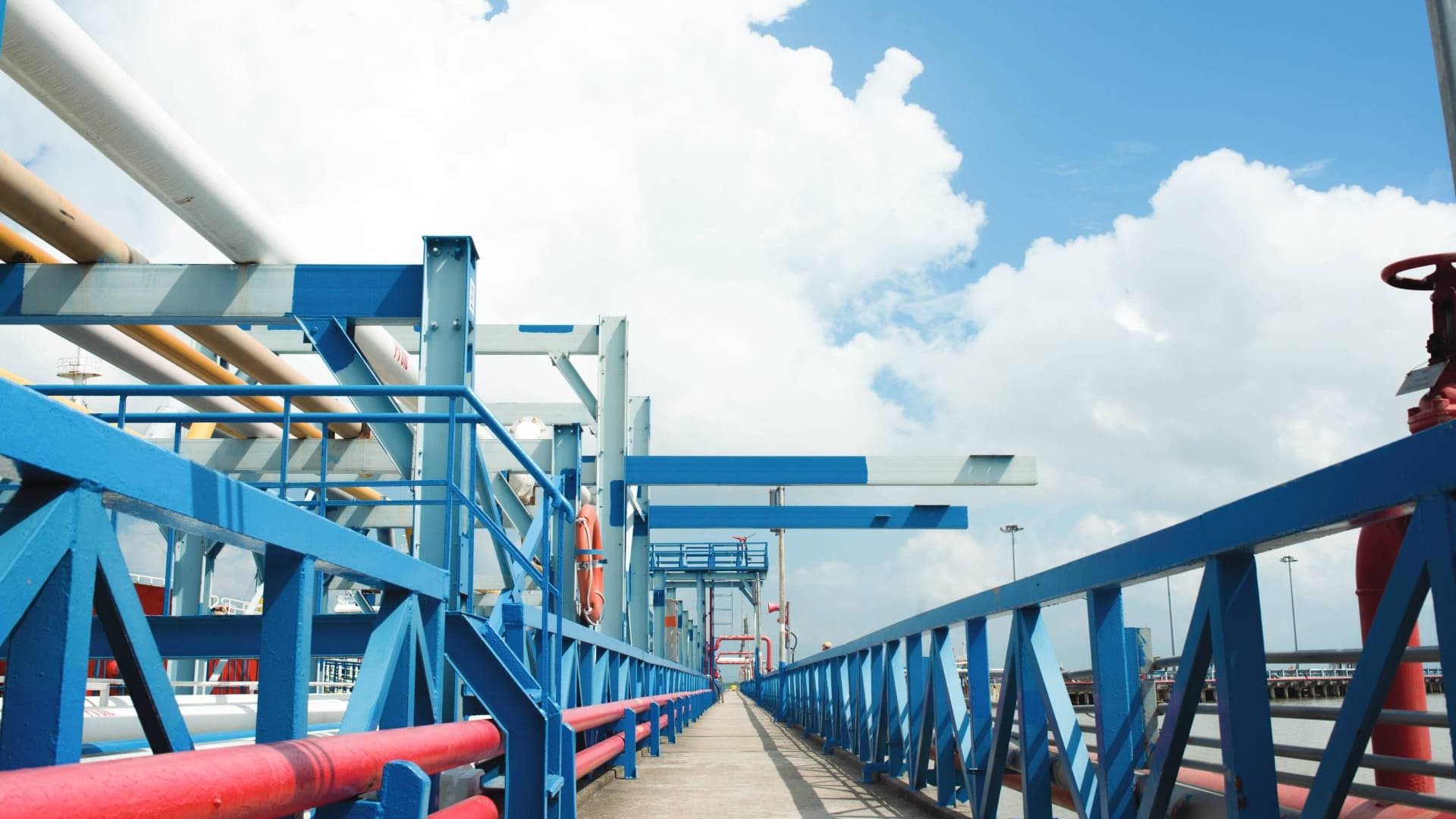

Liquid1
  • 24/7 CCTV surveillance at the jetty with coverage over all berths.

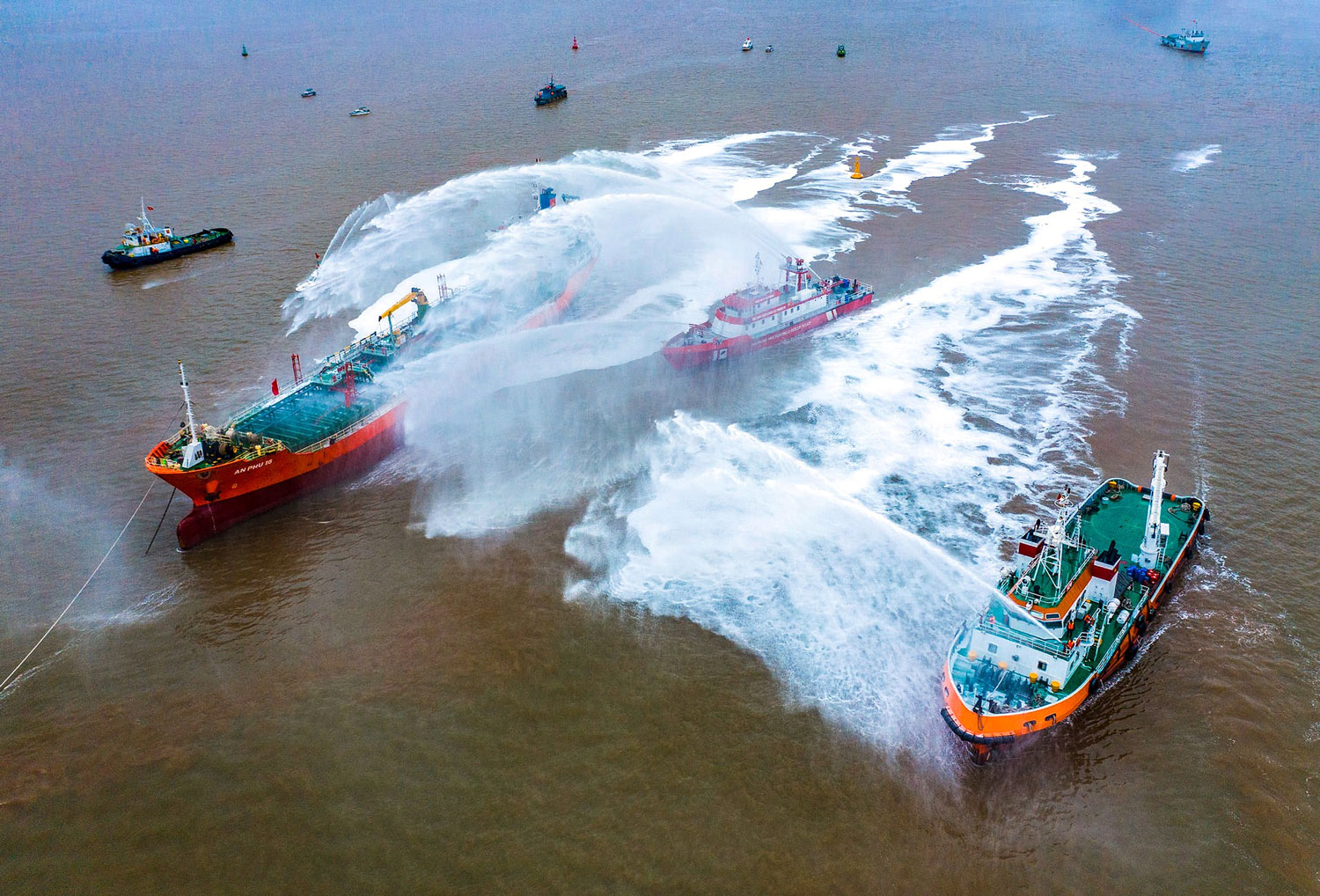

  • Annual drills of firefighting and oil spill response.
  • Firefighting system running throughout the jetty berths, pressure of 5-7 bar and reservoir of 1,000 m3
  • Periodic inspection and maintenance of auxiliary equipment and jetty structure.
  • Periodic inspection of clients’ pipelines.

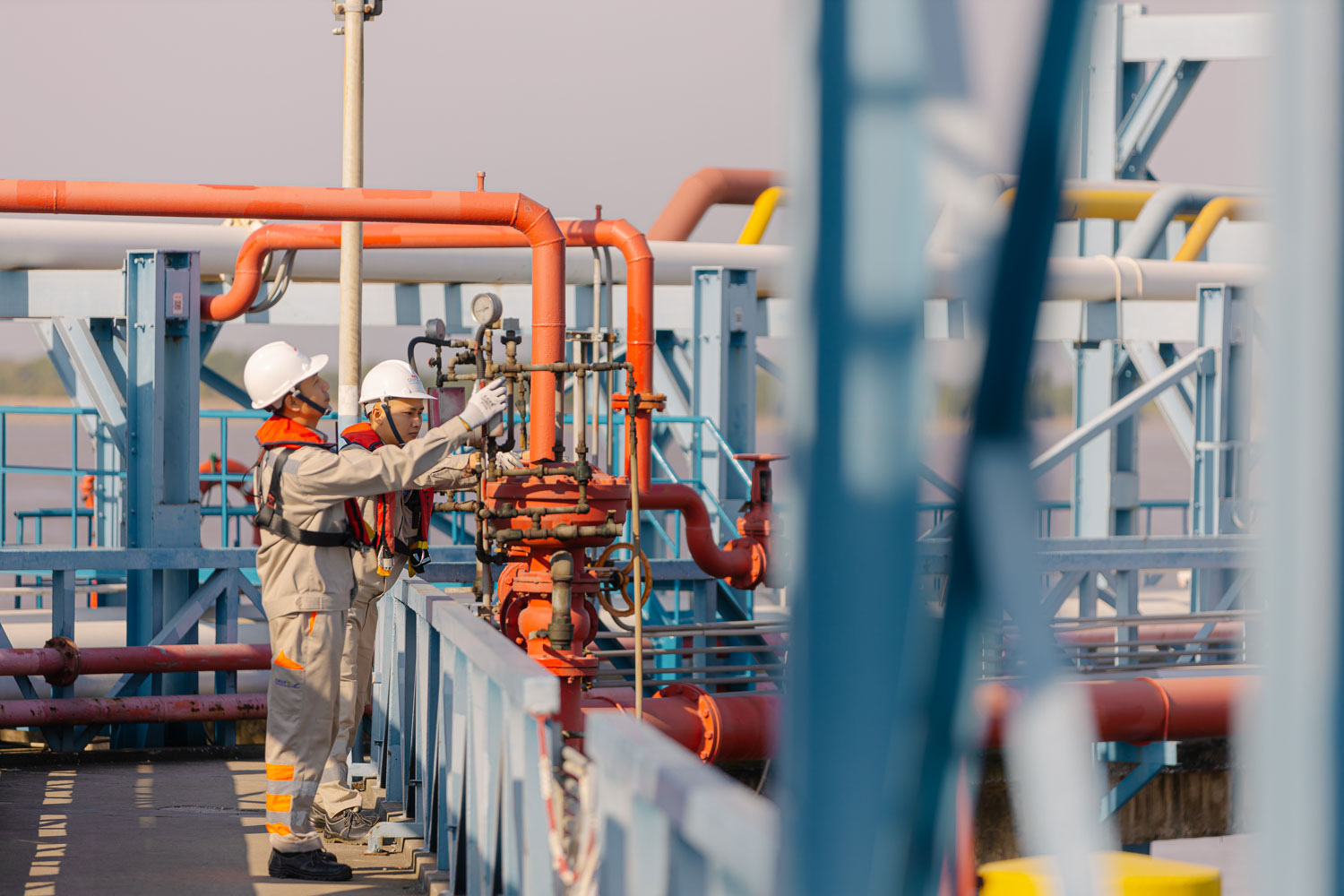

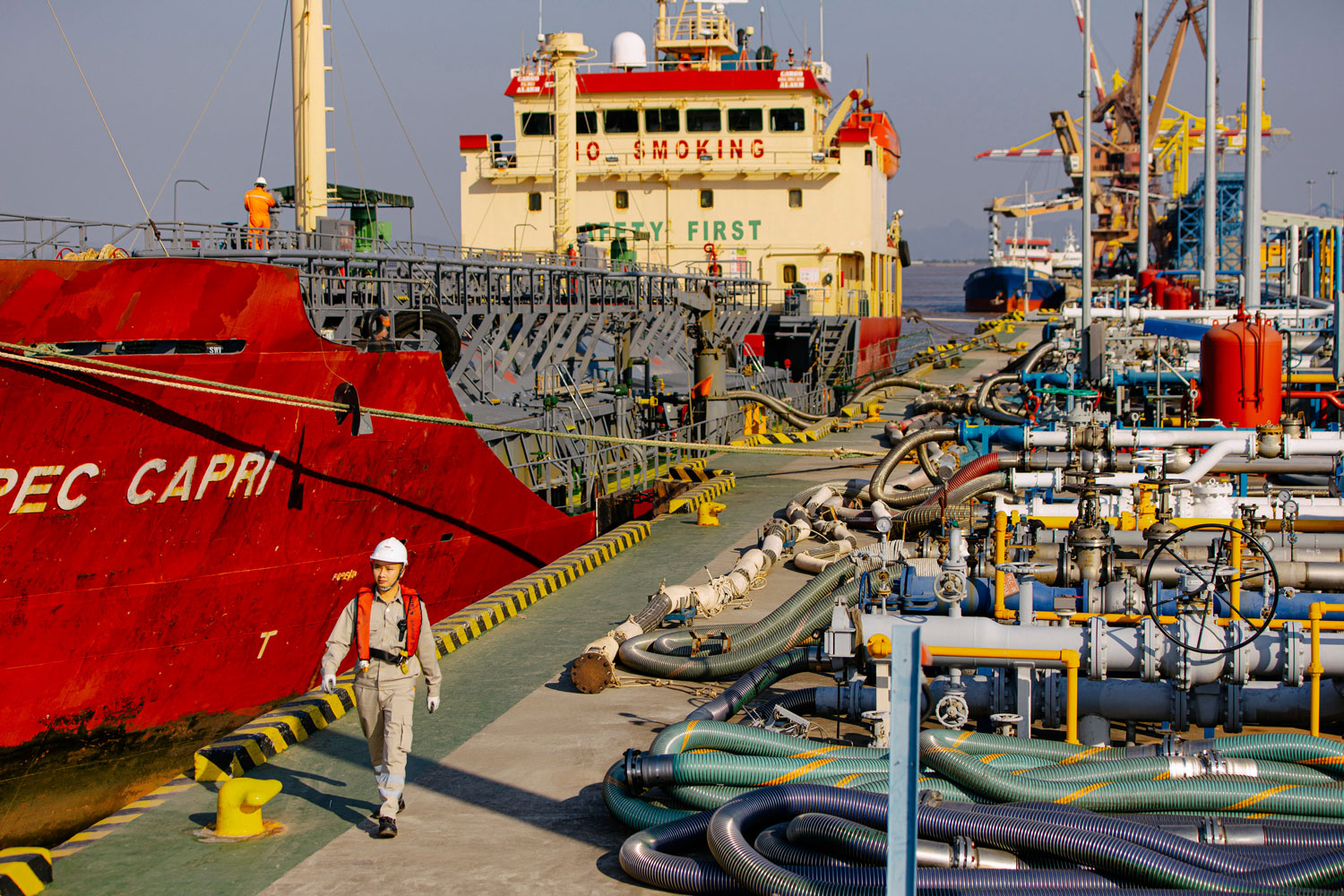

Safety Security
Safety Security
Safety Security
Safety Security

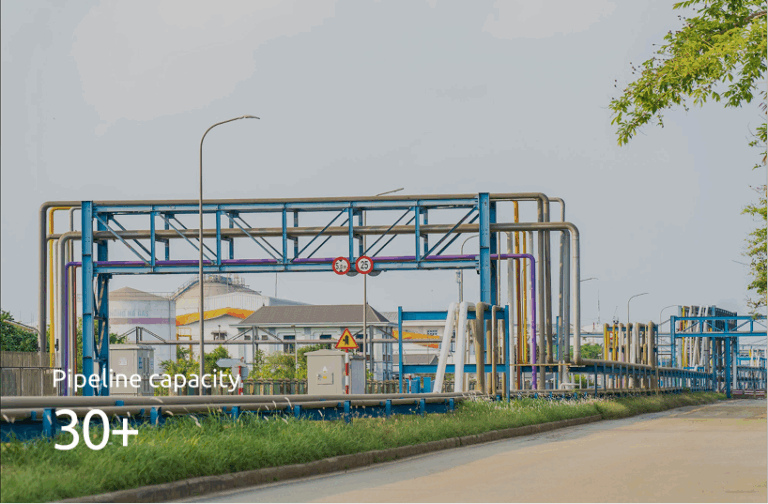

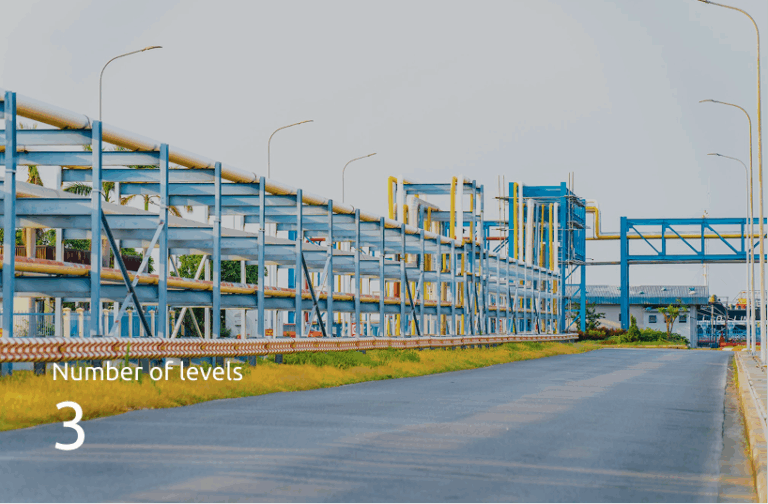

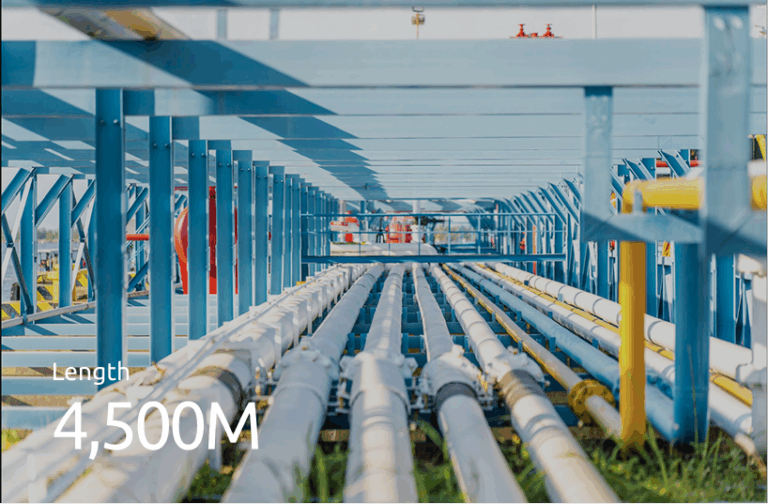

Pipe Rack System

DEEP C provides dedicated space for installing manifolds on the jetty, along with reserved capacity on the pipe rack system to enable direct pipeline connections from the jetty to clients’ facilities.

Pipe Rack System
Pipe Rack System
Pipe Rack System
